Products
Busway
Busway is a prefabricated electric power distribution system consisting of busbars in a protective
enclosure. Its can be used in main power riser in commercial building, transformer rooms, lower
voltage electrical rooms and Industrial power distribution. Busway System is designed for ease of
installation and electrical efficiency in the distribution of power.
Feeder and plug-in busway both utilize sandwich-type construction to provide superior voltage drop
characteristics, even at low power factors. This design does save space and reduce investment.
Housing offers major benefits since it greatly reduce the possibility of accidental contact with bus
bars and keeps dust and dirt out.
Consumer
Products
Consumer
Products
Services
<-Back
The busway‘s product family would separate as follow:
•
Feeder Busway (IP40, 54, 55, 65)
•
Plug In (IP40, 54, 55)
•
Flanged End
•
Elbow
•
Tee
•
Tab Box or Service Head
•
End Closure
TIEC team is the expert with more than 30 year experience
in busway system. We are fully supported to customer with
the brand of ‘Schneider’ and ‘Powerduct’ busway system.

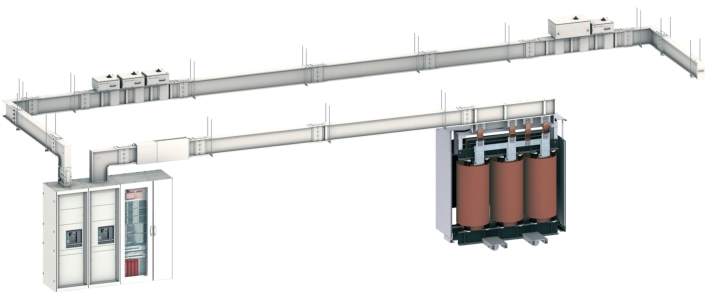

This compact size of busway means it takes
up very little space in the building.
•
used as a rising main, it takes up only
a minimum of space
•
used for horizontal distribution, it fits
easily into the building’s structure
(false floors, false ceilings, service
shafts, etc).
•
Changes in direction have been
designed to optimise the space taken
up, contrary to an equivalent
installation using cables which
requires large bending radii.
•
Tap-off units, complete with protective
devices, are fitted along the entire
length of the busbar trunking thus
reducing the floor area taken up by the
electrical distribution switchboards.
